Windows Mobile Startup Screens
Here are all the Windows Phone startup screens from 8, 8.1 and 10. These were all extracted from either an Update Ramdisk (UpdateOS.wim) or other startup files.
Normal Startup
First screen that shows up on a Microsoft Lumia device (not Nokia).
Normal Startup 2
Second screen that appears when powering on a Lumia device if startup successful.
BSOD (Blue Screen of Death)
This would occur at startup if the Windows Boot Manager fails to boot the Windows OS.
Reset Mode
These spinning gears show up when a Windows Phone device is undergoing a hard reset.
Update Mode
Windows boots off an update ramdisk called UpdateOS.wim. The gears would spin with a progress bar below.

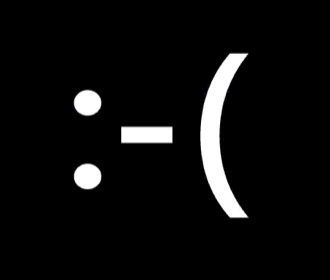

Update / Reset Failure
If a system reset or update is unsuccessful, a sad face will appear instead with a black screen.
Reset Warning Mode
This exclamation point would appear before you decide to hard reset your Lumia device.
Critical Battery
Your Lumia device’s battery is too low charge to start up.
Critical Battery 2
Your Lumia device’s battery is too low charge to start up.
FFU Flash Required
This screen would mean you may need to connect your device to a computer to flash an update.
Nokia Lumia FFU Restore Mode
When restoring a stock Windows Phone firmware from an FFU image, this is the screen that would show up on the target device.
Microsoft Lumia FFU Restore Mode
When restoring a stock Windows Phone firmware from an FFU image, this is the screen that would show up on the target device
